2019
Bass Buggy 16 DLX
Bass Buggy 16 DLX
w/Mercury 20 ELPT FourStroke
Boat, Motor, Trailer, and Cover - all included!

Coming Soon
Photos may show optional equipment.
Specs and features subject to change without notice.

Description

10+LIFE™ Limited Lifetime warranty

  • 24" (60.96 cm) diameter multichambered pontoon logs
  • Built-in Rail-Lock™ system for optional snapless mooring cover
  • NEW rotomolded furniture substructure
  • Bow fishing deck w/2 fold-down fishing chairs
  • Port pull-out boarding ladder
  • Forward-console 9-gal. (34.07 L) aerated livewell w/padded cushion
  • Vinyl flooring
  • Console w/drink & rod holders
  • L-lounge w/underseat storage
  • Color-keyed 6' (1.83 m) Bimini top

Families who love to fish will find plenty to love about the SUN TRACKER BASS BUGGY 16 DLX pontoon boat.

At a nimble 16’ overall, this boat is extremely easy to tow behind smaller vehicles, but it still provides all the features and comforts you need for a full day on the water, including a bow fishing deck, complete with two chairs and a plugin for the optional trolling motor, as well as an aerated livewell.

And it still offers enough storage under the L-lounge for the gear you need for a day of fishing with the family.

Specs & Layout

SpecificationsSpecifications
Max. person weight1150 lbs.  Length16'
Max. person, motor & gear weight1600 lbs.  Deck length13'
Interior depth24"  Deck width7' 1''
Average dry weight1175 lbs.  Max. recommended HP40 HP
Average package weight2166 lbs.  Fuel capacity (portable)6.6 gal.
Package height8' 8''  Fuel capacity (portable) w/9.9 motor3 gal.
Package width7' 1''  Pontoon log length15' 8''
Towing length21' 5''  Pontoon log diameter24"
Storage length21' 5''  Max. person capacity (Canada)6 persons

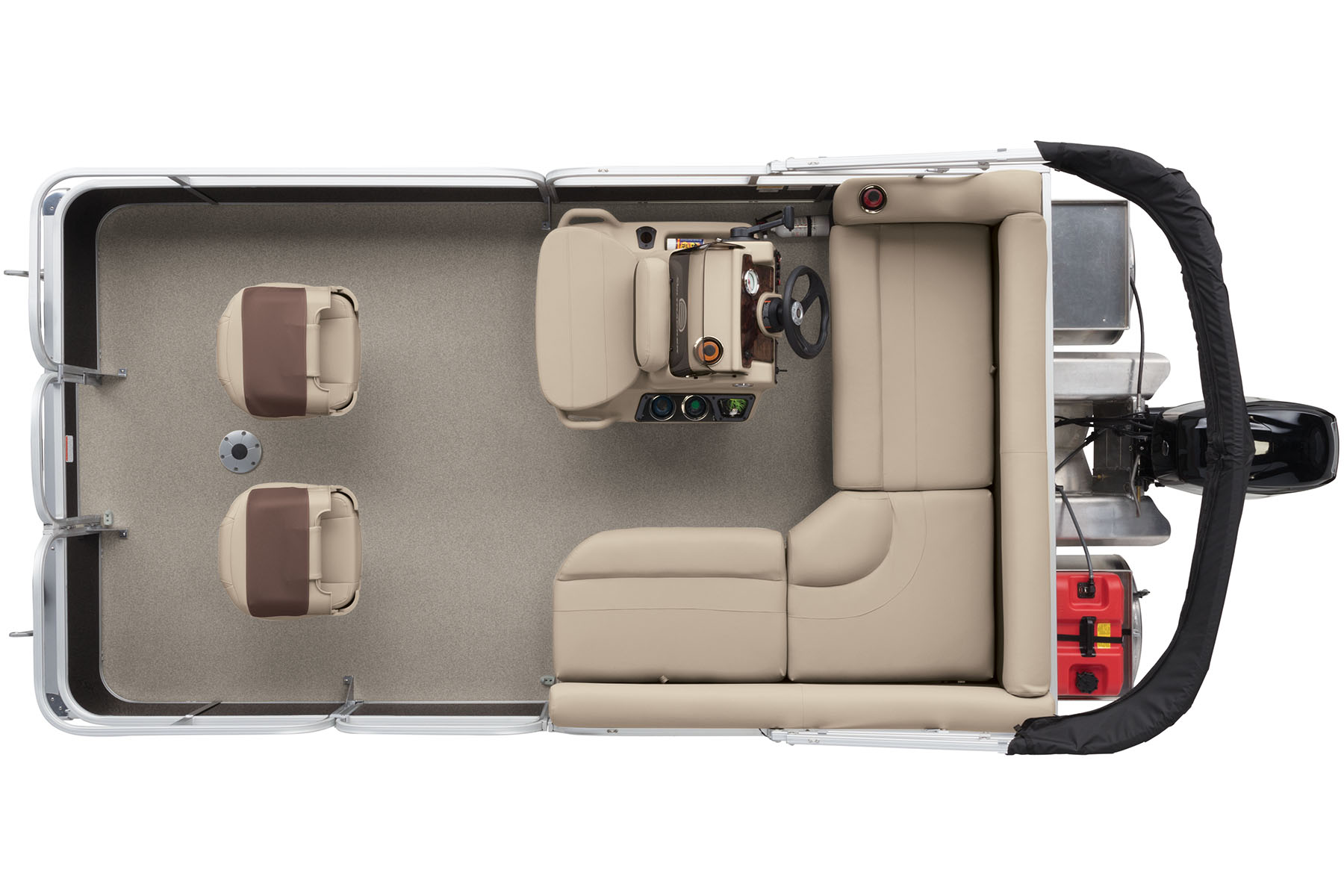

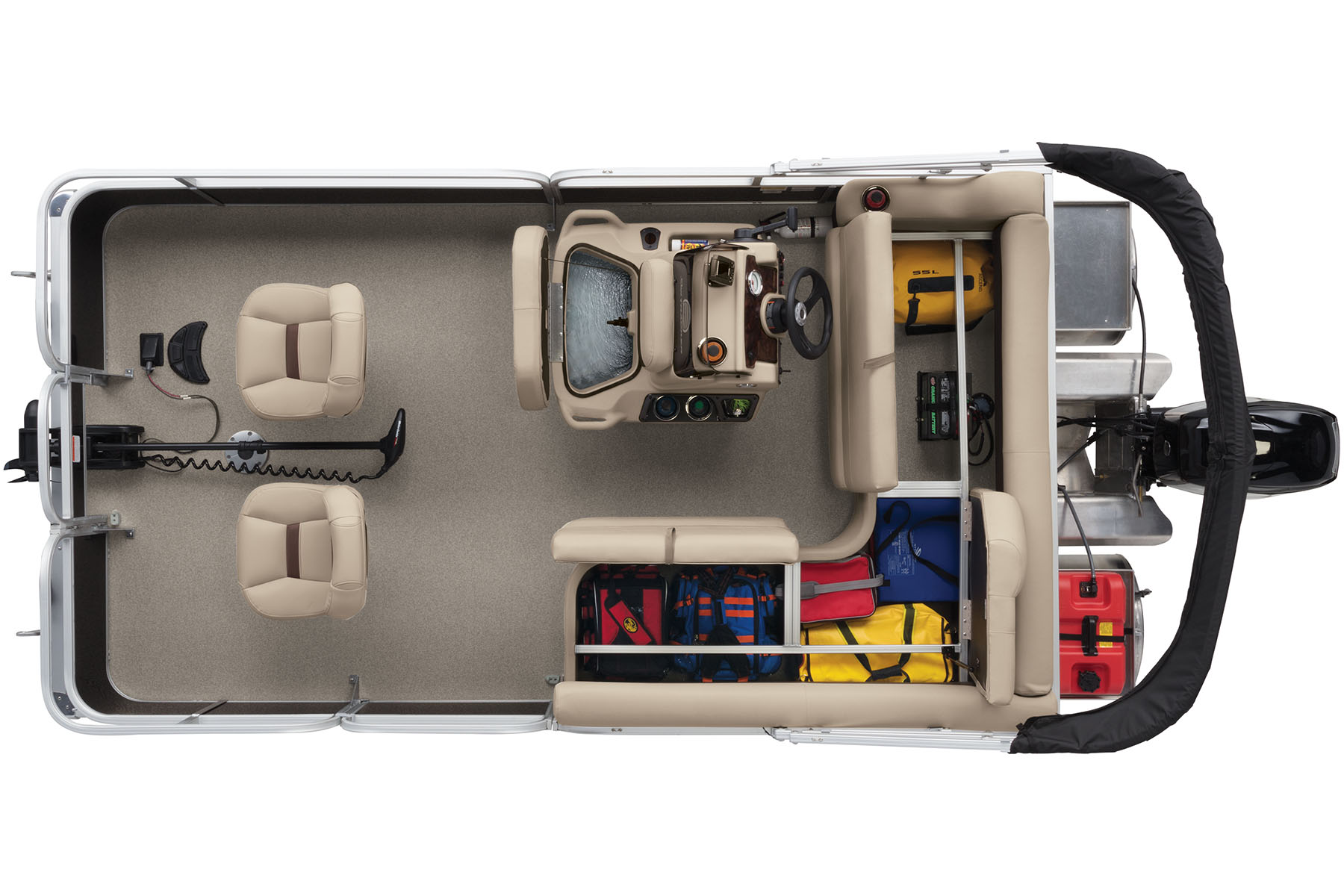

Move pointer over boat to open/close compartments.
Bass Buggy 16 DLX  Exclusive Auto Marine pontoon boat  fishing boat
Bass Buggy 16 DLX  Exclusive Auto Marine pontoon boat  fishing boat

Features

Standard Features
Comfort, Convenience & Peace of Mind
  • NMMA® certified
  • 6' (1.83 m) color-keyed polyester Bimini top w/protective boot, easy-adjusting straps
  • Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
  • NEW nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Livewell Systems
  • Forward-console 9-gal. (34.07 L) aerated livewell w/padded cushion
Console
  • Sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted windscreen
  • Vertical rod holder
  • Below-console storage space w/curtain
  • Integrated small items tray
  • Drink holders
  • Illuminated tachometer
  • Rocker switches
  • Side-mounted controls w/trim
  • 12V outlet
Interior
  • NEW upholstery
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow fishing positions w/2 removable folding fishing chairs
  • Forward-console seat w/molded-in grab handles & below-cushion livewell w/shutoff valve
  • Aft L-lounge w/underseat storage
  • Fishing friendly, easy-clean flooring throughout
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • In-deck pedestal base location for optional table
  • Port wheelchair-access gate
  • Port side, under-deck pull-out boarding ladder
Performance
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior
  • NEW rotomolded couches & backs for furniture
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • Rail-Lock™ system for mounting optional snapless, trailerable mooring cover w/removable bow extension
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished corner covers
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Black Metallic or NEW Indigo Blue fence color
Electrical
  • Marine-grade fuse panel
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting
