2019
Fishin' Barge 20 DLX
Fishin' Barge 20 DLX
$40,995
- $2,000 (SPECIAL FINANCE CASH REBATE)
- $1,000 (2019 SUN CHECK CREDIT)
= $37,995

w/Mercury 60 ELPT FourStroke Command Thrust
Boat, Motor, Tandem-Axle Trailer w/Brakes, and Cover - all included!

Canadian Price
$37,995 CAD or $151 Biwkly
Photos may show optional equipment.
Specs and features subject to change without notice.

Description

10+LIFE™ Limited Lifetime warranty

  • 24" (60.96 cm) diameter multichambered pontoon logs
  • Built-in Rail-Lock™ system for optional snapless mooring cover
  • Bow fishing deck w/2 fold-down fishing chairs, rod holders & rail-mounted drink/tool holders
  • Forward-console couch w/Stow More™ seat-back compartment & 10-gal. (37.85 L) aerated livewell
  • NEW high-back helm chair
  • NEW woven vinyl flooring
  • Aft L-lounge w/Stow More™ seat-back compartment, lockable underseat storage & pop-up changing curtain
  • Aft fishing deck w/8-gal. (30.28 L) aerated livewell, fold-down fishing chair & rod holders
  • Color-keyed 7' (2.13 m) Bimini top w/QuickLift™ deployment system & storage pockets
  • Aft boarding platform w/fold-down ladder

Fishing for 2–or 10! At 21’ 11” long and 8’ 6” wide, the FISHIN’ BARGE 20 DLX is spacious enough for however many—or few—people who you want to take with you on the water.

Regardless the crew size, you’ll be impressed with the great features throughout, including the fore and aft fishing decks, two aerated livewells and plentiful rod storage. And don’t miss the Stow More seat storage system, which provides easily accessible storage in the couch backs!

All that and more makes this a family fishing boat you’ll enjoy for years to come.

Specs & Layout

SpecificationsSpecifications
Max. person, motor & gear weight1900 lbs.  Length21' 11''
Interior depth24"  Deck length19' 10''
Average dry weight1700 lbs.  Deck width8' 6''
Average package weight3363 lbs.  Max. recommended HP90 HP
Package height8' 9''  Fuel capacity32.1 gal.
Package width8' 6''  Pontoon log length20' 4''
Towing length30' 4''  Pontoon log diameter24"
Storage length30' 4''  Max. person capacity10 persons
 Max. person weight1370 lbs.

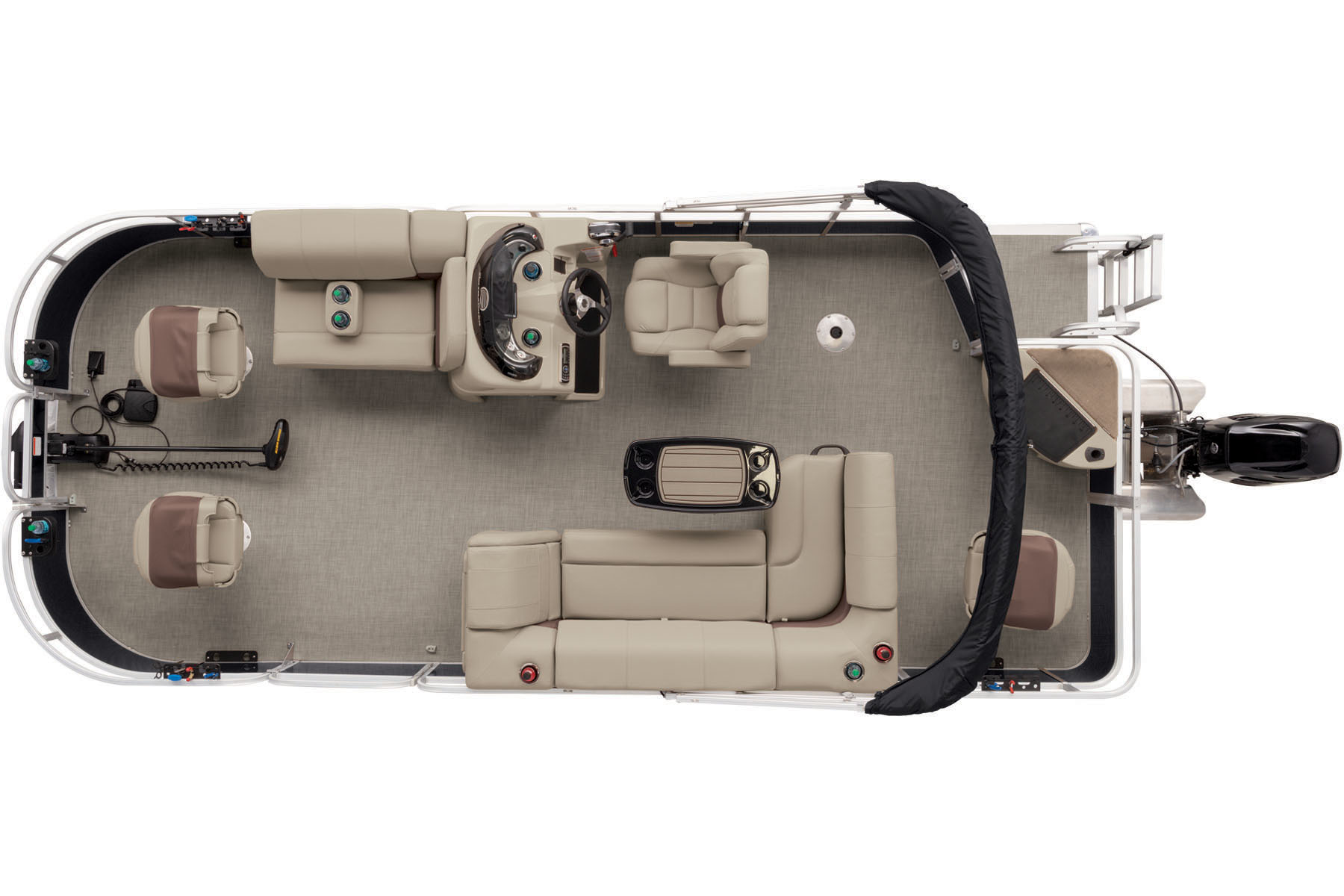

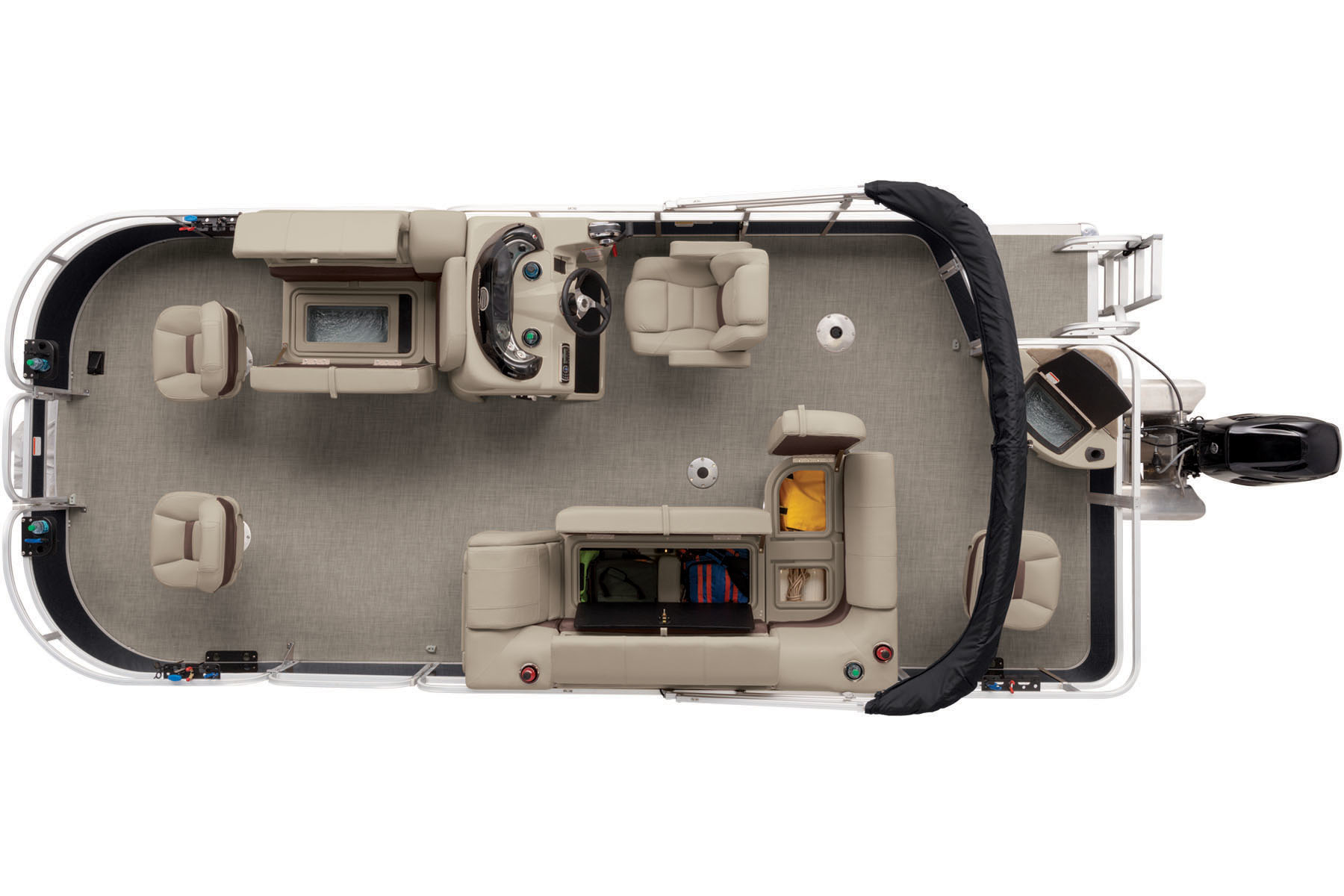

Move pointer over boat to open/close compartments.
Fishin' Barge 20 DLX  Exclusive Auto Marine  pontoon boat  fishing boat
Fishin' Barge 20 DLX  Exclusive Auto Marine  pontoon boat  fishing boat

Features

Standard Features
Comfort, Convenience & Peace of Mind
  • NMMA® certified
  • 7' (2.13 m) color-keyed Bimini top w/LED courtesy lights & protective boot
  • NEW front zipper on Bimini top to join optional double Bimini together
  • Storage pockets in Bimini top
  • Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
  • NEW nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Livewell Systems
  • Starboard in-couch 10-gal. (37.85 L) aerated livewell w/shutoff valve & padded backrest
  • Aft rotomolded compartment w/8-gal. (30.28 L) aerated livewell w/shutoff valve, drink holder, rod holder, battery storage & composite lid w/ruler
Console
  • Deluxe soft-touch sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted windscreen
  • Below-console cooler/storage space
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • AM/FM Bluetooth®-capable stereo w/MP3 jack & 2 speakers
  • Illuminated tachometer, trim & fuel gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet
Interior
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow & aft fishing positions w/3 removable folding fishing chairs
  • Forward-console couch w/Stow More™ system & below-cushion livewell w/shutoff valve
  • Aft L-lounge w/Stow More™ system, underseat storage & lockable storage compartment
  • Aft storage net
  • NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
  • Pop-up changing room in lounge arm
  • Bow-rail-mounted rod, drink & tool holders
  • Fore & aft vertical rod holders
  • Padded woven vinyl floor covering
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Movable drink holder/armrest
  • NEW removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
  • Port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails
Performance
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior
  • NEW interior styling
  • Rotomolded furniture backs & bases for resistance to the elements
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • Rail-Lock™ system for mounting optional snapless, trailerable mooring cover w/removable bow extension
  • Protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Rear boarding platform
  • Black Metallic or NEW Copper Red fence color
Electrical
  • Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting
