2020
Fishin' Barge 20 DLX
Fishin' Barge 20 DLX
$41,995
-$2,000 (SPECIAL FINANCE CASH REBATE)
$39,995

w/ 60 ELPT FourStroke Command Thrust
Boat, Motor, Trailer, and Cover - all included!

+$2,000 w/ 90 ELPT FourStroke Command Thrust
Canadian Price
Photos may show optional equipment.
Specs and features subject to change without notice.

Description

  • 10+LIFE™ Limited Lifetime Warranty
  • 24" (60.96 cm) diameter multichambered pontoon logs
  • Built-in RAIL-LOCK® system for mounting optional covers
  • Bow fishing deck w/NEW rotomolded storage boxes, 2 fold-down fishing chairs, rod holders & rail-mounted drink/tool holders
  • Forward-console couch w/STOW MORE™ seat-back compartment & 10-gal. (37.85 L) aerated livewell
  • High-back helm chair
  • Woven flooring throughout
  • Aft L-lounge w/STOW MORE™ seat-back compartment & lockable underseat storage
  • Aft fishing deck w/8-gal. (30.28 L) aerated livewell, fold-down fishing chair & rod holders
  • NEW color-keyed 9' (2.74 m) Bimini top w/QUICKLIFT® deployment system & storage pockets
  • Aft boarding platform w/fold-down ladder

For 2020, SUN TRACKER® designers having rethought the FISHIN’ BARGE® 20 DLX to make it more stylish, while continuing to provide the comfort and fishing features families want in a 21’ 11” overall pontoon boat.

The FISHIN’ BARGE 20 DLX comes complete with fore and aft fishing decks, including a total of three casting chairs, two aerated livewells (18 gallons total!) and rod storage galore. Or, for those non-fishing moments, check out the STOW MORE™ seat storage system, which combines seat-back storage with underseat storage compartments to provide even more space to drop your gear.

All that combined with the new 9’ QUICKLIFT® Bimini top, lounge seating, new bow storage and RAIL-LOCK® mooring cover mounting system creates a pontoon boat that’s ready for all your family’s fishing (and just plain fun) needs.

Specs & Layout

SpecificationsSpecifications
Max. person weight1370 lbs.  Length21' 11''
Max. person, motor & gear weight1900 lbs.  Deck length19' 10''
Interior depth24"  Deck width8' 6''
Average dry weight1939 lbs.  Max. recommended HP90 HP
Average package weight3602 lbs.  Fuel capacity32.1 gal.
Package height8' 9''  Pontoon log length20' 4''
Package width8' 6''  Pontoon log diameter24"
Towing length30' 4''  Pontoon log material0.080 5052 marine alloy
Storage length30' 4''  Max. person capacity10 persons

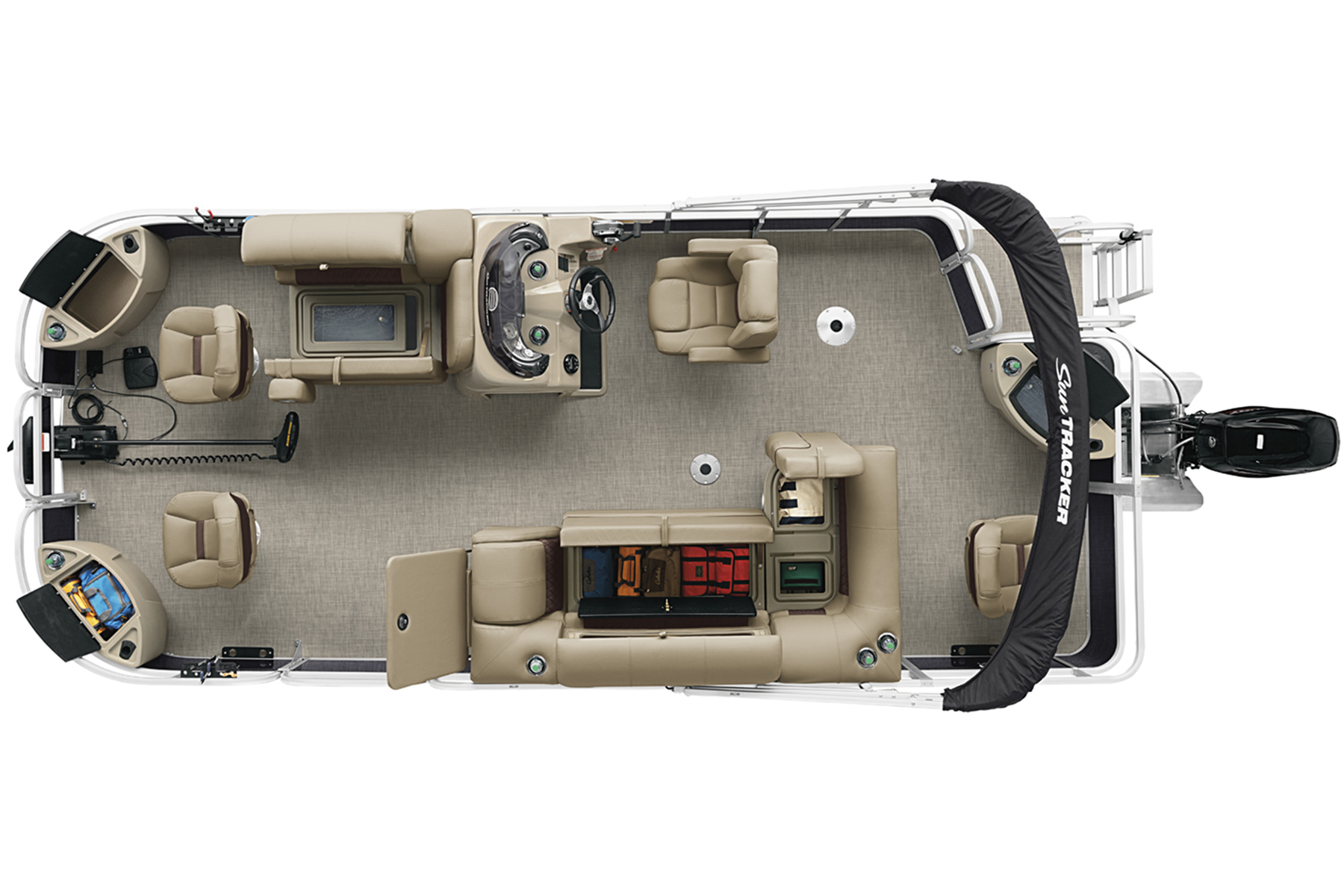

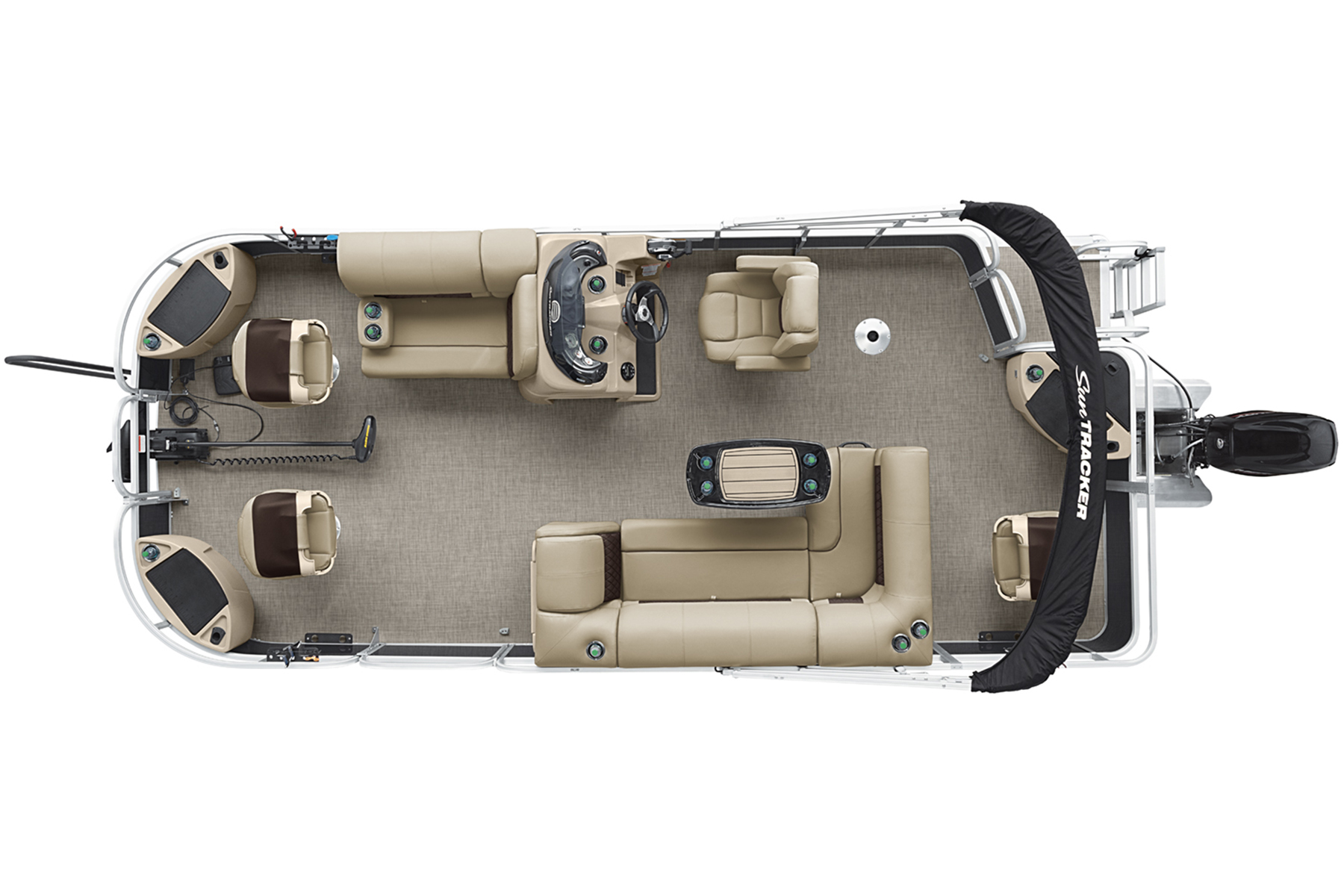

Move pointer over boat to open/close compartments.
2020 Fishin Barge 20 DLX Exclusive Auto Marine pontoon boats
2020 Fishin Barge 20 DLX Exclusive Auto Marine pontoon boats

Features

Standard Features
Comfort, Convenience & Peace of Mind
10+LIFE™ Limited Lifetime Warranty
NMMA® certified
NEW 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain
Front zipper on Bimini top to join optional forward Bimini together
QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
Storage pockets in Bimini top
Nylon gate latches & heavy-duty hinges that open inward
Port & starboard LED navigation lights
Bimini-mounted anchor/navigation light
4 mooring cleats
Motor-stop safety lanyard
Fire extinguisher
Horn
Livewell Systems
Starboard in-couch 10-gal. (37.85 L) aerated livewell w/shutoff valve & padded backrest
Aft rotomolded compartment w/8-gal. (30.28 L) aerated livewell w/shutoff valve, drink holder, rod holder, battery storage & composite lid w/ruler
Console
Deluxe soft-touch sport steering wheel
4:2 ratio no-feedback steering for responsive, easy turning
Wraparound sport console shroud & tinted windscreen
Below-console cooler/storage space
Small items tray
Drink holders
Built-in footrest w/non-skid pad
AM/FM Bluetooth®-capable stereo w/2 speakers
Illuminated tachometer, trim & fuel gauges
Lighted rocker switches
Ergonomically positioned Mercury® binnacle control box w/trim
12V outlet
NEW darker console color
Interior
STOW MORE™ system features an added compartment in the seat back for increased storage
NEW bow port & starboard rotomolded boxes w/storage, rulers & drink holders
Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
Bow & aft fishing positions w/3 removable folding fishing chairs
Forward-console couch w/STOW MORE™ system & below-cushion livewell w/shutoff valve
Aft L-lounge w/STOW MORE™ system, underseat storage & lockable storage compartment
Aft storage net
High-back swiveling helm bucket seat, reclining & w/self-leveling arms
Bow-rail-mounted rod, drink & tool holders
Fore & aft vertical rod holders
Woven 16-oz. (.45 kg) marine-grade flooring throughout
NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Movable drink holder/armrest
Removable table w/padded insert, 4 molded-in drink holders & 1 pedestal base location
Port wheelchair-access gate
4-step folding boarding ladder w/grab rails
Performance
Nose cone & motor pod wave/spray deflectors for a drier ride
Factory-matched aluminum propeller
Construction & Exterior
Color: Black Metallic or Copper Red fencing
NEW exterior styling
Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
Rotomolded couches & backs for furniture w/NEW Diamante Pepper accent
Fishing seats w/NEW Diamante Pepper accent
Heavy-duty bow U-channel reinforcement behind deck trim
24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
1-piece full-length M-bracket deck supports
RAIL-LOCK® system for mounting optional tops & optional mooring cover
NEW protective exoskeleton rail & panel system for durability & a quieter ride
High-sheen fence finish for long-lasting good looks
1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
Extruded anodized aluminum deck edging w/polished aft corner covers
All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
Stainless or coated corrosion-resistant fasteners
7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
Elevated fence panels for deck drainage & ventilation
Sound- & vibration-deadening fence insulation for a quiet ride
Box-beam all-aluminum transom for strength & longevity
Rear boarding platform
Electrical
Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
Protective abrasion-resistant wire wrap
Water-resistant connectors
Interior courtesy lighting
