2023

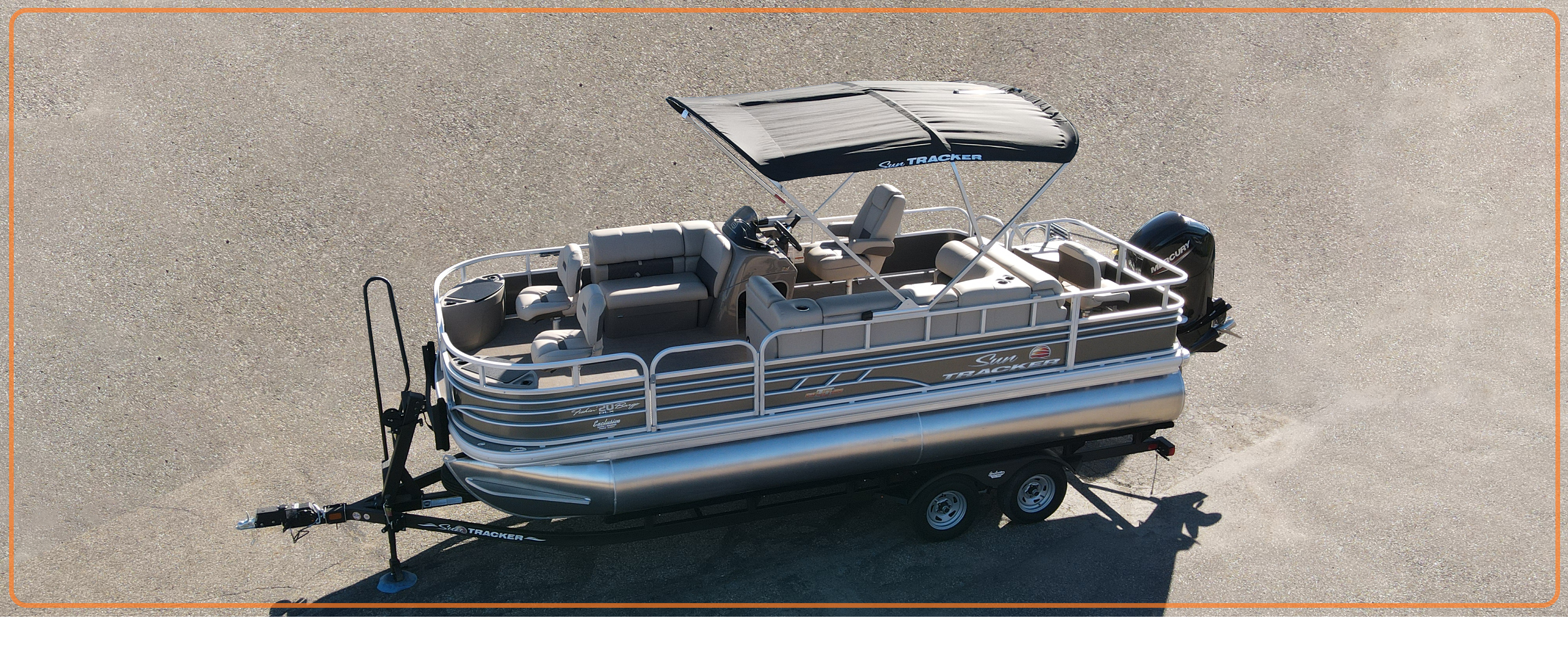

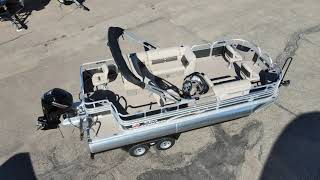

Fishin' Barge 20 DLX
Fishin' Barge 20 DLX
w/ 90 ELPT FourStroke Command Thrust
Boat, Motor, EXCLUSIVE BONUS - Custom Installed Fishfinder,
Tandem Axle Brakex2 Trailer and Upgraded Cover ALL INCLUDED
Coming Soon
Photos may show optional equipment.
Specs and features subject to change without notice.

Description

contact us

The FISHIN’ BARGE® 20 DLX provides all the comfort and fishing features families want in a 21’ 11” overall pontoon boat.

It comes complete with fore and aft fishing decks, including a total of three casting chairs, two aerated livewells (18 gallons total!) and rod storage galore. Or, for those non-fishing moments, check out the STOW MORE™ seat storage system, which combines seat-back storage with underseat storage compartments to provide even more space to drop your gear.

All that combined with the new 10’ powered Bimini top, lounge seating and bow storage creates a pontoon boat that’s ready for all your family’s fishing (and just plain fun) needs.

Specs & Layout

SpecificationsSpecifications
Max. Person Weight1370 lbs.  Length21' 11''
Max. Person, Motor & Gear Weight1900 lbs.  Deck Length19' 10''
Interior Depth24''  Deck Width8' 6''
Average Dry Weight1940 lbs.  Max. Recommended HP90 HP
Average Package Weight3605 lbs.  Fuel Capacity32.1 gal.
Package Height8' 6''  Pontoon Log Length20' 4''
Package Width8' 6''  Pontoon Log Diameter24''
Towing Length30' 4''  Pontoon Log Material0.080 5052 marine alloy
Storage Length30' 4''  Max. Person Capacity10 persons

Move pointer over boat to open/close compartments.
2023 Suntracker Fishin' Barge 20 DLX, Exclusive Auto Marine, fishing pontoon boat, power boat, outboard motors, mercury marine
2023 Suntracker Fishin' Barge 20 DLX, Exclusive Auto Marine, fishing pontoon boat, power boat, outboard motors, mercury marine

Features

COMFORT, CONVENIENCE & PEACE OF MIND
  • 10+LIFE™ Limited Lifetime Warranty
  • NMMA® certified
  • 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)
  • Storage pockets in Bimini top
  • Nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • Four 4.5" (11.43 cm) fold-down mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
LIVEWELL SYSTEM
  • Starboard in-couch 10-gal. (37.85 L) aerated livewell w/shutoff valve & padded backrest
  • Aft rotomolded compartment w/8-gal. (30.28 L) aerated livewell w/shutoff valve, drink holder, rod holder, battery storage & composite lid w/ruler
CONSOLE
  • Deluxe soft-touch sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted windscreen
  • Below-console cooler/storage space
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 NEW upholstery speakers
  • USB/3.5 mm auxiliary input ports on console for direct stereo connection
  • Illuminated tachometer, trim & fuel gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet
  • Dark console color
INTERIOR
  • The patented STOW MORE™ system features an added compartment in the seat back for increased storage
  • Bow port & starboard rotomolded boxes w/storage, rulers & drink holders
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow fishing deck w/2 removable folding fishing chairs
  • Bow rail-mounted vertical rod & tool holders
  • Forward-console couch w/STOW MORE™ system & below-cushion livewell w/shutoff valve
  • Aft L-lounge w/STOW MORE™ system, underseat storage, lockable storage compartment & arm
  • High-back swiveling helm bucket seat, reclining & w/self-leveling arms
  • Aft storage net
  • Aft rail-mounted vertical rod & tool holders
  • Aft fishing deck w/1 removable folding fishing chair
  • Woven 16-oz. (.45 kg) marine-grade flooring throughout
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Movable drink holder/armrest
  • Removable table w/padded insert, 4 molded-in drink holders & 1 pedestal base location
PERFORMANCE
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
CONSTRUCTION & EXTERIOR
  • Color: NEW Charcoal or NEW Indigo Blue fencing
  • Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
  • Rotomolded couches & backs for furniture w/Diamante Pepper accent
  • Fishing seats w/Diamante Pepper accent
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • Protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Port wheelchair-access gate
  • Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails
ELECTRICAL
  • Interior courtesy lighting
  • Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
