2019
Fishin' Barge 22 DLX
Fishin' Barge 22 DLX
w/Mercury 60 ELPT FourStroke Command Thrust
Boat, Motor, Tandem-Axle Trailer w/Brakes, and Cover - all included!

Coming Soon
Photos may show optional equipment.
Specs and features subject to change without notice.

Description

10+LIFE™ Limited Lifetime warranty

  • 24" (60.96 cm) diameter multichambered pontoon logs
  • Built-in Rail-Lock™ system for optional snapless mooring cover
  • Bow fishing deck w/port 12-gal. (45.42 L) aerated livewell, starboard compartment prewired for optional fish package, 2 fishing chairs & rod, tool & drink holders
  • Console w/cooler storage below, NEW helm chair, stereo w/Bluetooth® & USB input & forward couch w/Stow More™ seat-back compartment & lockable underseat compartment
  • Color-keyed 9' (2.74 m) Bimini top w/QuickLift™ deployment system & storage pockets
  • Aft L-lounge w/underseat storage, movable drink holder, base for removable table, Stow More™ seat-back compartment & pop-up changing curtain
  • Aft fishing deck w/16-gal. (60.57 L) aerated livewell, 2 fishing chairs & rod holders & convenient access to lounge-back-integrated compartment
  • NEW woven vinyl flooring
  • Aft boarding platform w/fold-down ladder

Teach your kids or grandkids the joys of fishing. Invite out your friends for a day of trolling and socializing. No matter the activity or the crew’s age, everyone will appreciate the space, stability and features offered by FISHIN’ BARGE 22 DLX.

For the anglers, fore and aft fishing decks both feature two fishing chairs and an aerated livewell, as well as conveniently located rod holders. And when you’re not fishing, the QuickLift™ Bimini top, L-lounge and plentiful storage (including the Stow More seat storage system) are ready to provide you all-day comfort and convenience.

The FISHIN’ BARGE 22 DLX—the perfect platform for making fishing memories.

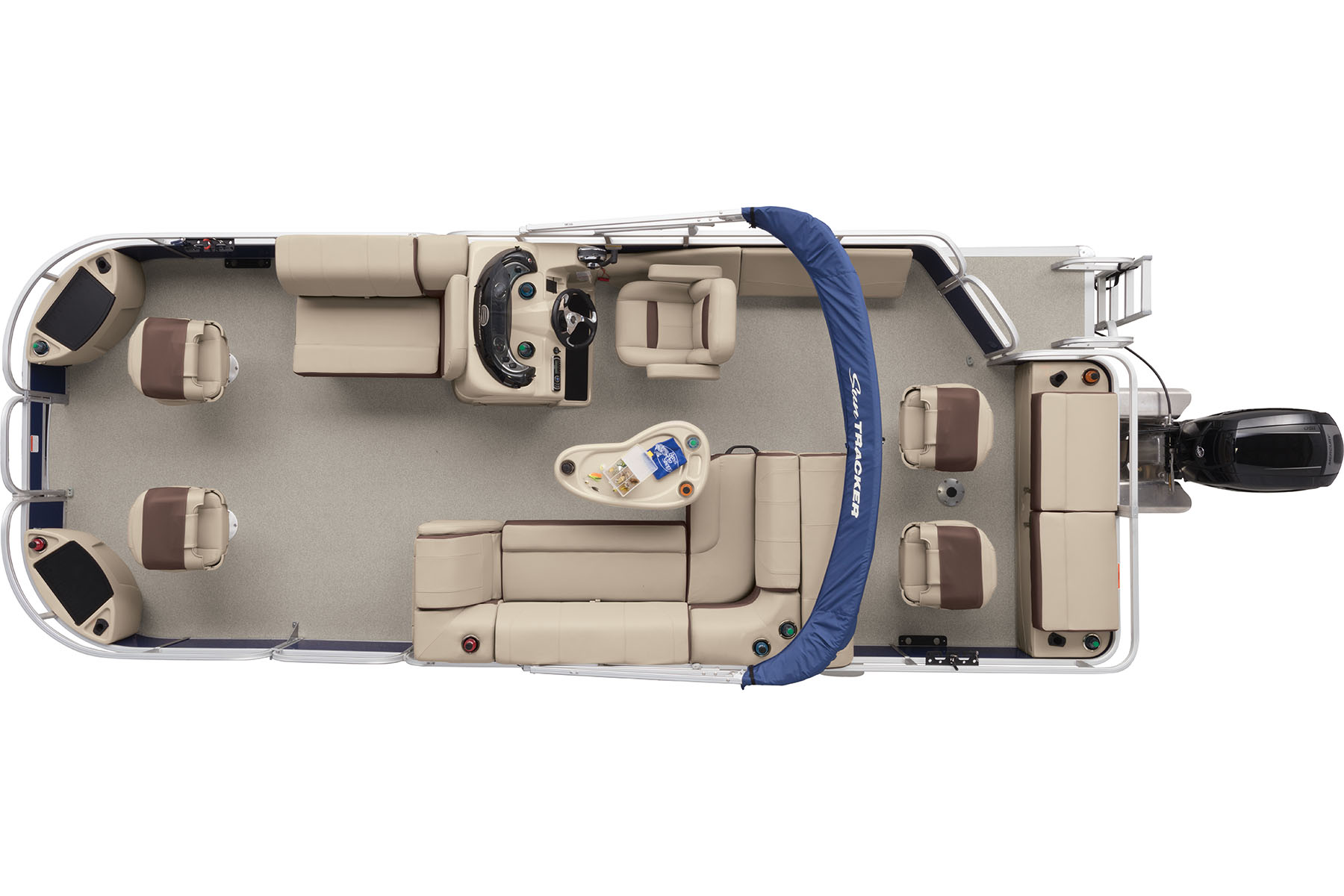

Specs & Layout

SpecificationsSpecifications
Max. person, motor & gear weight2148 lbs.  Length24' 2''
Interior depth26"  Deck length22' 1''
Draft15"  Deck width8' 6''
Average dry weight1820 lbs.  Max. recommended HP150 HP
Average package weight3654 lbs.  Fuel capacity32.1 gal.
Package height9'  Pontoon log length22' 3''
Package width8' 6''  Pontoon log diameter24"
Towing length32' 4''  Max. person capacity11 persons
Storage length32' 4''  Max. person weight1500 lbs.

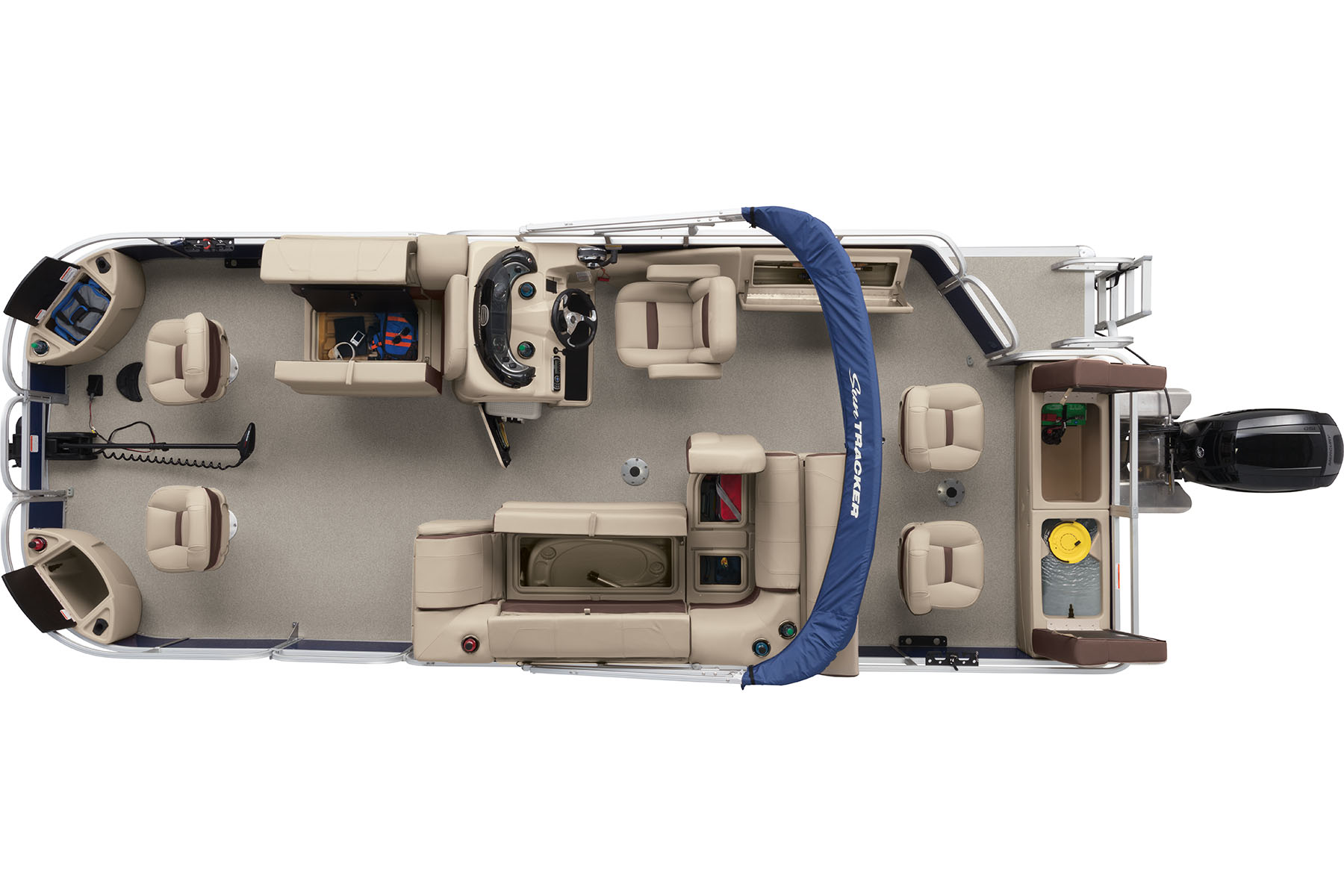

Move pointer over boat to open/close compartments.
Fishin' Barge 22 DLX  Exclusive Auto Marine  pontoon boat  fishing boat
Fishin' Barge 22 DLX  Exclusive Auto Marine  pontoon boat  fishing boat

Features

Standard Features
Comfort, Convenience & Peace of Mind
10+LIFE™ warranty
NMMA® certified
9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
NEW front zipper on Bimini top to join optional double Bimini together
Exclusive QuickLift™ Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
Storage pockets in Bimini top
Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
NEW nylon gate latches & heavy-duty hinges that open inward
Port & starboard LED navigation lights
Bimini-mounted anchor/navigation light
4 mooring cleats
Motor-stop safety lanyard
Fire extinguisher
Horn
Livewell Systems
Bow port 12-gal. (45.42 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler
Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve
Console
Deluxe soft-touch sport steering wheel
4:2 ratio no-feedback steering for responsive, easy turning
Wraparound sport console shroud & tinted, removable windscreen
Below-console cooler/storage space w/door & integrated pouch
Small items tray
Drink holders
Built-in footrest w/non-skid pad
AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 2 directional speakers
Tachometer, trim meter/speedometer & fuel & hour gauges
Lighted rocker switches
Ergonomically positioned Mercury® binnacle control box w/trim
12V outlet
Interior
Port bow rotomolded box w/livewell, ruler & drink holders
Starboard bow rotomolded box w/storage, ruler & drink holders
Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
Bow & aft fishing positions w/4 removable folding fishing chairs
Forward-console couch w/Stow More™ system & lockable underseat storage
Aft L-lounge w/Stow More™ system & underseat storage
Rear-facing tackle storage in aft L-lounge
NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
Pop-up changing room in lounge arm
Fore & aft vertical rod holders
Molded starboard aft lockable rod box for rods to 7' 6" (2.29 m)
Padded woven vinyl floor covering
Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Movable drink holder/armrest
NEW removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
Port wheelchair-access gate
4-step folding boarding ladder w/grab rails
Performance
Nose cone & motor pod wave/spray deflectors for a drier ride
Factory-matched aluminum propeller
Construction & Exterior
NEW interior styling
Rotomolded furniture backs & bases for resistance to the elements
Heavy-duty bow U-channel reinforcement behind deck trim
24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
1-piece full-length M-bracket deck supports
Rail-Lock™ system for mounting optional snapless, trailerable mooring cover w/removable bow extension
Protective exoskeleton rail & panel system for durability & a quieter ride
High-sheen fence finish for long-lasting good looks
1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
Extruded anodized aluminum deck edging w/polished aft corner covers
All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
Stainless or coated corrosion-resistant fasteners
7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
Elevated fence panels for deck drainage & ventilation
Sound- & vibration-deadening fence insulation for a quiet ride
Box-beam all-aluminum transom for strength & longevity
Rear boarding platform
Black Metallic or NEW Indigo Blue fence color
Electrical
Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
Protective abrasion-resistant wire wrap
Water-resistant connectors
Interior courtesy lighting
