Fishin' Barge 22 XP3
Fishin' Barge 22 XP3
-$2,000 (Special Finance Cash Rebate)

with Mercury 115 ELPT FourStroke Command Thrust
Boat, Motor, Tandem Axle Surge Brake x2 Trailer & Cover ALL INCLUDED

Bimini Top
Hydraulic Steering
Tilt Steering
Power Trim/Tilt
Helm-mounted Lowrance Elite 5x
Aerated Aft Livewell
Boarding Ladder
Canadian Price
Photos may show optional equipment.
Specs and features subject to change without notice.


contact us

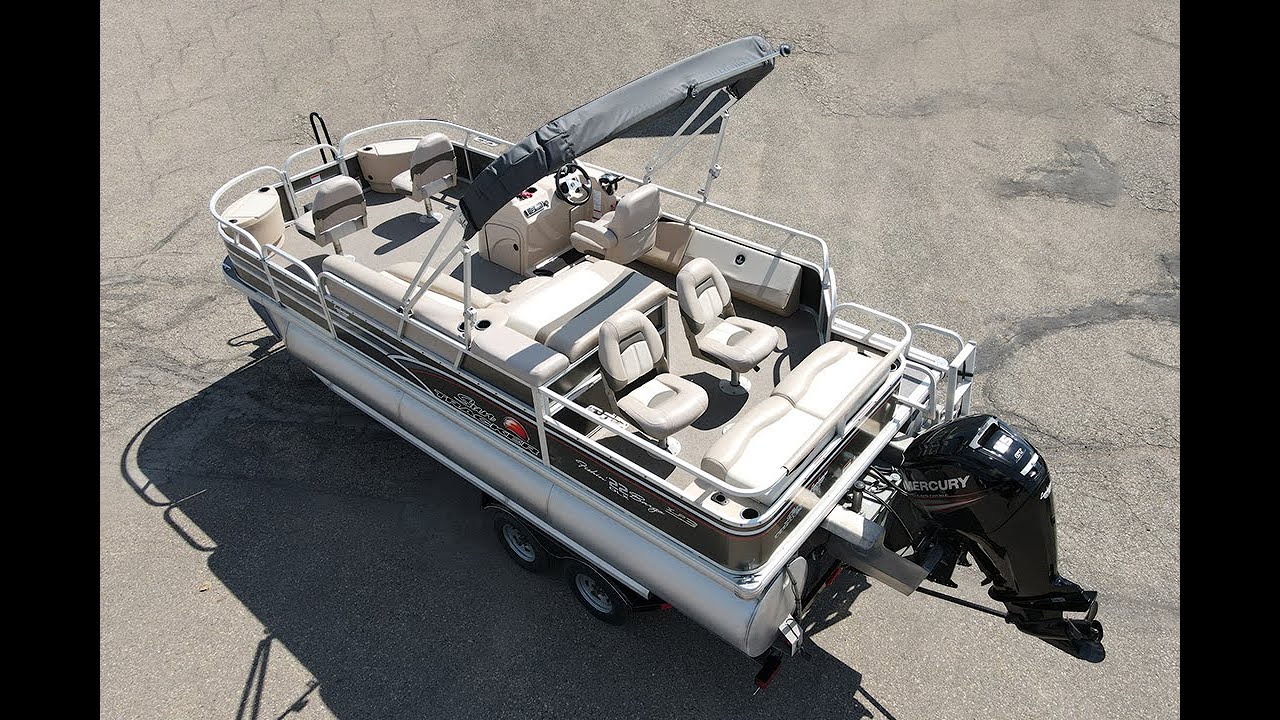

The FISHIN’ BARGE 22 XP3 rides high on three robotically welded 26” pontoon logs with lifting strakes—and it will carry up to ten family and friends for the fishing adventure of a lifetime!

Fishing features include 2 livewells, 4 fold-down fishing chairs and a molded starboard aft lockable rod box for rods to 7' 6". Comfort features include a new console with a wrap-around sport shroud & tinted, removable windscreen, AM/FM Bluetooth®-capable stereo, and below-console storage. And plush marine-grade, UV-resistant, upholstery w/26-oz. base & multiple densities of foam for the ultimate in comfort.

Specs & Layout

Approx. package weight 4371 Lbs.  Length 22' 2''
Max. person capacity 10 Persons  Max. recommended HP 150 HP
Depth inside 24"  Package width 8' 6''
Max. weight capacity 2300 Lbs.  Fuel capacity 35 Gallons
Max. person weight 1650 Lbs.  Pontoon log diameter 26"
Deck width 102"  Pontoon log length 22' 2''
Towing length 30' 2''  Pontoon log material 0.100 5052 Marine Alloy
Storage length 28' 2''  Approx. weight2580 Lbs.
Package height 9' 6''
Move pointer over boat to open/close compartments.
used pontoon boat, 2015 Sun Tracker Fishin' Barge 22 XP3, power boat. outboard motors, Mercury marine
used pontoon boat, 2015 Sun Tracker Fishin' Barge 22 XP3, power boat. outboard motors, Mercury marine


Comfort, Convenience & Peace of Mind

  • 10+Life™ Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty + transferable to a second owner
  • NMMA Certified
  • Colour-keyed 9' (2.74 m) polyester Bimini top w/protective boot, easy-adjusting straps & trailering-position arms
  • Storage pockets in Bimini top
  • Pull-down loops on Bimini top straps help keep fabric taut for best appearance & reduced vibration
  • Dual-latching gates w/finger guards & brightly finished heavy-duty hinges that open inward
  • Gate stops/holders to keep gates secure in open position
  • Navigation lights w/LED bow lights
  • 4 mooring cleats
  • Engine-stop safety lanyard
  • Fire extinguisher
  • Horn


  • Console style w/wrap-around sport shroud & tinted, removable windscreen
  • Built-in foot rest w/non-skid pad
  • Deluxe soft-touch sport steering wheel
  • Hydraulic steering
  • 4:2 ratio steering for responsive, easy turning
  • AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 2 directional speakers
  • Below-console cooler/storage space w/access door & integrated map pouch
  • Illuminated tachometer, trim & fuel gauges
  • Convertible small items tray accepts optional flush-mount fishfinder
  • Lighted rocker switches
  • Ergonomically positioned binnacle control box
  • Mercury® binnacle control box w/trim

Construction & Exterior

  • Fence graphics for 2015
  • THREE 26" (66.04 cm) diameter XP3 high-performance multi-chambered pontoon logs w/welded-in lifting strakes, wave deflectors & internal bracing for additional strength
  • 1-piece full-length deck support
  • High-sheen fence finish for long-lasting good looks
  • 1.25" (3.18 cm) anodized aluminum fence rails w/decorative styling
  • Reinforced bow structure
  • Factory-installed underpinning (under-deck shielding) for improved performance
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 0.75" (1.91 cm) deck w/Limited Lifetime Warranty
  • Roto-moulded furniture backs & bases for resistance to the elements
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound & vibration-deadening fence insulation for a quiet ride
  • Box beam all-aluminum transom for strength & longevity


  • Easy-access marine-grade automotive-style fuse panel
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting throughout


  • Wide 8.5-ft. (2.59 m) beam for expanded floor space
  • Pillowtop-style upholstery (marine-grade, UV-resistant, top-coated 26-oz. base & multiple densities of foam) for exceptional comfort & luxury
  • Fishing friendly, easy-clean vinyl flooring throughout
  • Oversized, swiveling, adjustable helm seat w/folding arms
  • Aft fence padded backrest
  • Aft L-lounge w/lockable underseat dry storage box
  • Padded aft sundeck w/pop-up changing room/storage compartment w/bench & storage net
  • Bow & aft fishing positions w/4 removable fold-down fishing chairs
  • Fishing chairs constructed w/all-composite seat frames & heavy-duty seats w/2-0.38" (6.03 cm) pedestals
  • Movable drink holder/bolster
  • Aft lounge w/underseat battery storage & 16-gal. livewell
  • Fore & aft vertical rod holders
  • Removable table w/moulded-in drink holders w/2 pedestal base locations
  • Port & starboard bow roto-moulded boxes w/livewell, battery storage, ruler, rod holders & drink holders
  • Moulded starboard aft lockable rod box for rods to 7' 6" (2.29 m)
  • Port-wheelchair-access gate
  • Rear boarding platform/aft entry w/heavy-duty non-skid surface for durability
  • 3-step folding boarding ladder w/grab rails

Livewell Systems

  • Bow port roto-moulded 8-gal. (30.28 L) aerated livewell w/shutoff valve & composite lid w/fish ruler
  • Port 16-gal. (60.56 L) aerated livewell w/removable bait bucket & shutoff valve


  • Factory-matched aluminum propeller
  • THREE pontoon logs for extra lift, buoyancy speed & handling vs. two pontoon logs
  • Extended motor pod w/built-in performance-enhancing features


  • Tandem-axle trailer w/brakes on both axles
