2025

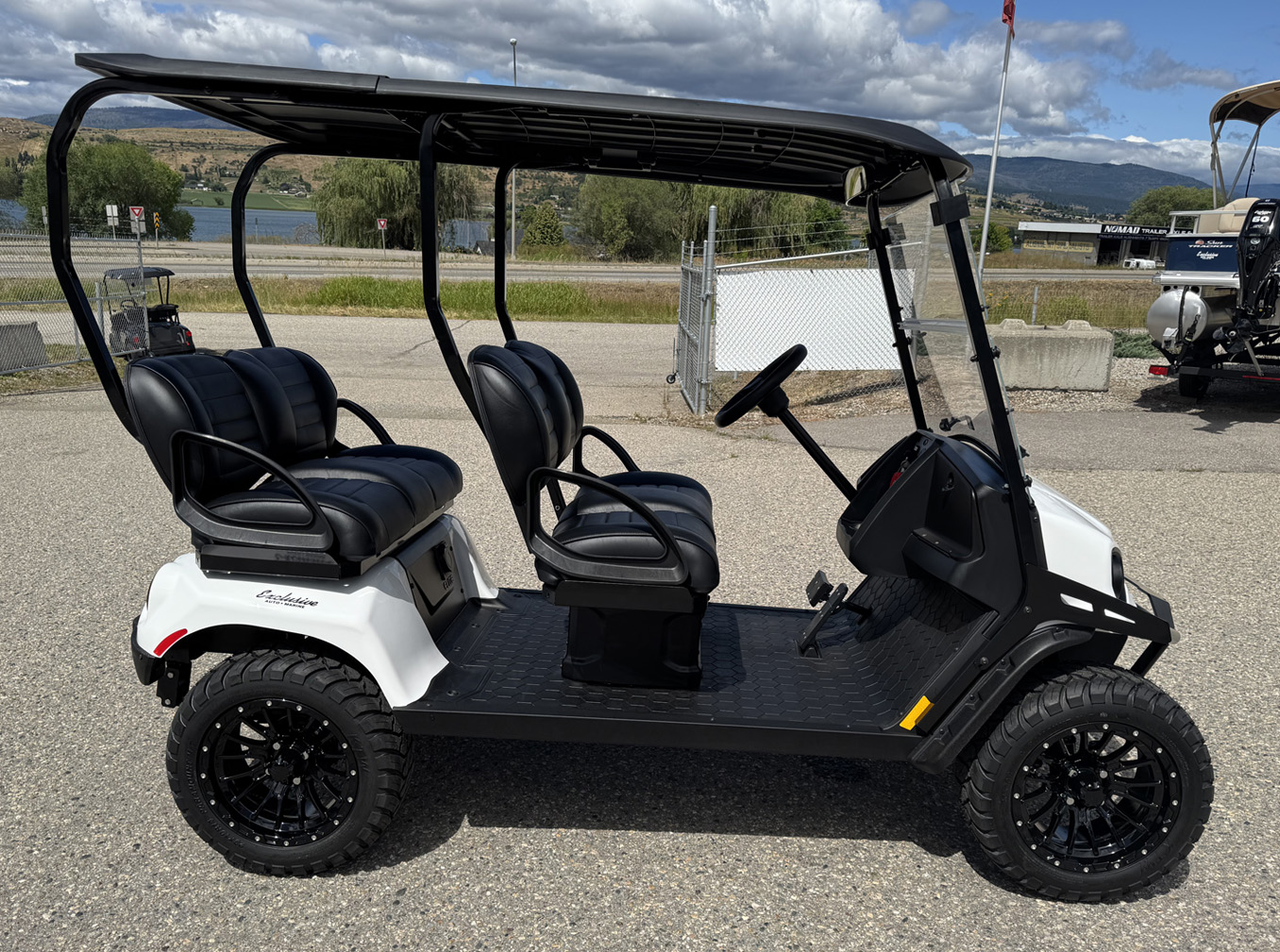

Liberty Elite LITHIUM

Liberty Elite LITHIUM
Coming Soon
Photos may show optional equipment.
Specs and features subject to change without notice.
Specs and features subject to change without notice.

Description
Take on Even More Roads
Go where no golf cart has gone before in the Liberty, with four forward-facing seats for a completely unique riding experience. Turn heads with premium packages featuring LED cupholders, sculpted foam seats for extra comfort, and the maintenance-free ELiTE® lithium powertrain.
Specs & Layout
Specifications | Specifications | |||
Drivetrain | Direct-Drive AC Induction Motor | Overall Length | *106 in (269 cm) | |
Transaxle | *Differential with Helical Gears | Overall Width | *48 in (122 cm) | |
Gear Selection | Dash Mounted FNR/Key Switch | Overall Height (w/o Roof) | 52.5 in (133 cm) | |
Rear Axle Ratio | *17:1 (Forward) | Overall Height (w/ Roof) | *76 in (193 cm) | |
Batteries (Qty/Type) | *ELiTE 2.2, Single 56.7V Max Lithium | Wheel Base | *76.5 in (194 cm) | |
Battery Charger | Light World Charger 56.7V, 10 ft. DC Cord | Front Wheel Track | 38 in (97 cm) | |
Load Capacity | 800 lb (363 kg) | Rear Wheel Track | 39 in (99 cm) | |
Outside Clearance | *12.85 ft (3.92 m) | Ground Clearance | *5.5 in (14 cm) | |
Speed | *Up to 19 mph ± 0.5 mph (Up to 30.6 kph ± 0.8 kph) | Power Source | 56.7 V Max | |
Steering | Self-Compensating Reduction Rack and Pinion | Valve Train | N/A | |
Suspension | Leaf Springs with Hydraulic Shock Absorbers | Fuel System | N/A | |
Service Brake | *Dual Rear Wheel Mechanical Self-Adjusting Drum | Horsepower/kW | 11.7 hp (8.7 kW) | |
Parking Brake | Automatic Electro-Magnetic (ELiTE Only) | Electrical System | 48 VDC | |
Tires | MT Paramount, 23x10-14, Radial, Black SPDR Alloy Wheel | Key/Pedal Start | Pedal | |
