2019
Party Barge 22 XP3
Party Barge 22 XP3
w/Mercury 115 ProXS FourStroke Command Thrust
Boat, Motor, Tandem-Axle Trailer w/Brakes, and Cover - all included!

Coming Soon
Photos may show optional equipment.
Specs and features subject to change without notice.

Description

10+LIFE™ Limited Lifetime warranty

  • XP3 performance package w/three 26” (66.04 cm) logs w/lifting strakes
  • Built-in Rail-Lock™ system for optional snapless mooring cover
  • NEW woven vinyl flooring
  • Port & starboard bow lounges w/Stow More™ seat-back compartments & underseat storage
  • Aft lounge w/Stow More™ seat-back compartments, lockable underseat storage & pop-up changing curtain
  • Color-keyed 9' (2.74 m) Bimini top w/QuickLift™ deployment system & storage pockets
  • Movable table w/fore & midship bases
  • Molded console w/cooler storage below, NEW helm chair & stereo w/Bluetooth® & MP3 input
  • Full-width aft swim platform w/boarding ladder & receptacle for optional ski tow pylon

Forget the pool or patio parties! With its 200-horsepower rating and XP3 performance package, the PARTY BARGE 22 XP3 will have your friends begging you for a pontoon party instead!

In addition to its thrilling performance capabilities, this boat offers a rather lengthy list of comfort and convenience features to ensure your party is top-notch. There are four couches throughout, each with a ton of storage space in them, for all-day comfort. And don’t miss the under-console cooler storage, QuickLift Bimini and Bluetooth stereo, to name just a few of the great features onboard.

It’s everything you need for the perfect party!

Specs & Layout

SpecificationsSpecifications
Interior depth26"  Length24' 2''
Draft12"  Deck length22' 1''
Average dry weight2885 lbs.  Deck width8' 6''
Average package weight4881 lbs.  Max. recommended HP200 HP
Package height8' 11''  Fuel capacity52 gal.
Package width8' 6''  Pontoon log length22' 3''
Towing length32' 4''  Pontoon log diameter26"
Storage length32' 4''  Max. person capacity11 persons
 Max. person weight1600 lbs.
 Max. person, motor & gear weight2400 lbs.

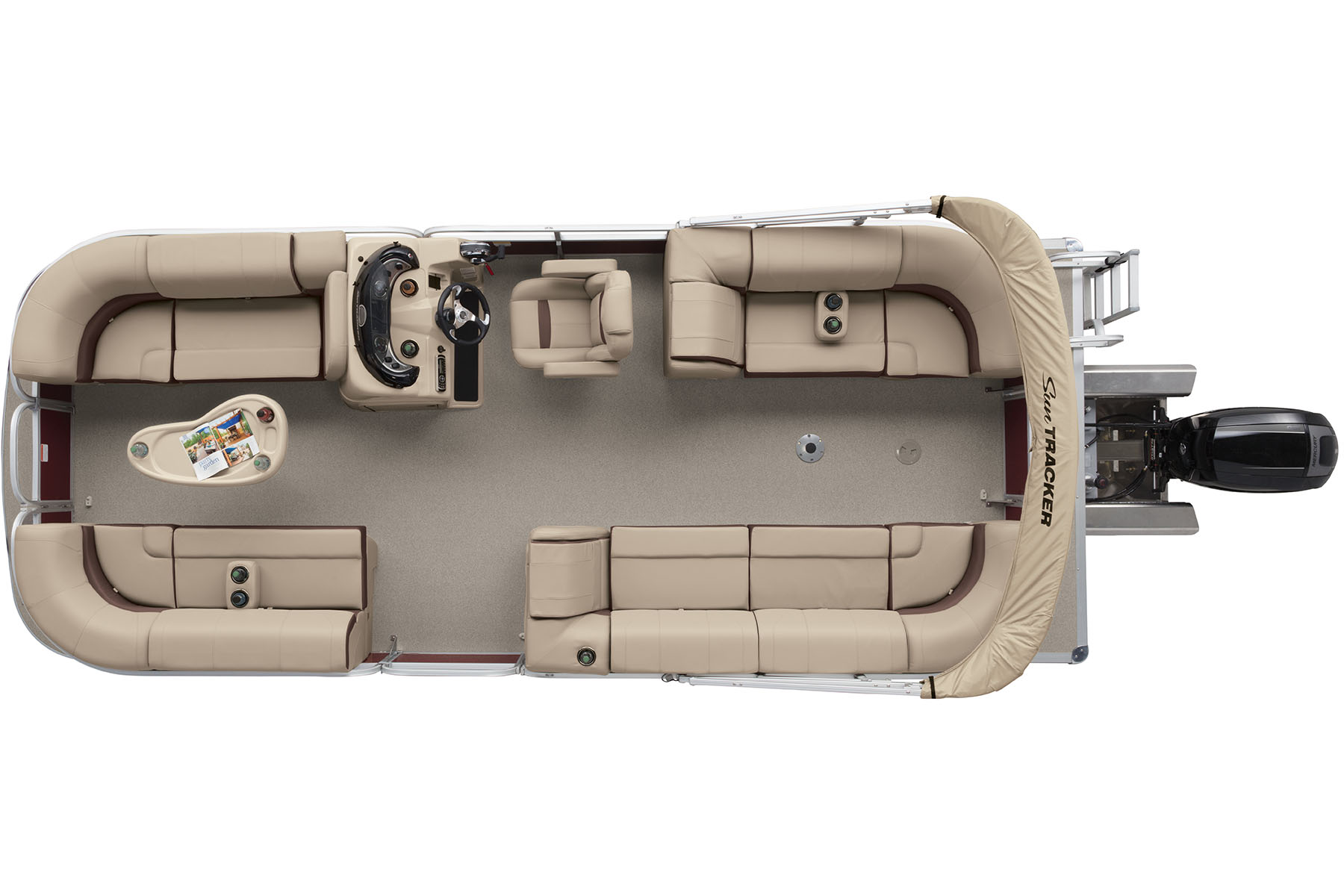

Move pointer over boat to open/close compartments.
Party Barge 22 XP3  Exclusive Auto Marine pontoon boat
Party Barge 22 XP3  Exclusive Auto Marine pontoon boat

Videos & Photos

Features

Standard Features
Comfort, Convenience & Peace of Mind
  • NMMA® certified
  • 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
  • NEW front zipper on Bimini top to join optional double Bimini together
  • Storage pockets in Bimini top
  • Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
  • NEW nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • 4 NEW folding mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Console
  • Deluxe soft-touch sport steering wheel
  • Hydraulic steering w/tilt
  • Wraparound sport shroud & tinted, removable windscreen
  • Below-console cooler/storage space w/door & integrated pouch
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 4 directional speakers
  • Tachometer, trim meter/speedometer & fuel & hour gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet
Interior
  • Port & starboard bow couches w/Stow More™ system & underseat storage
  • Starboard aft couch w/Stow More™ system & lockable underseat storage
  • NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
  • Pop-up changing room
  • Full-width aft swim deck
  • Receptacle for optional ski tow pylon
  • Padded woven vinyl floor covering
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • 2 movable drink holders/armrests
  • NEW removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
  • Port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails
Performance
  • XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior
  • NEW interior styling
  • Rotomolded furniture backs & bases for resistance to the elements
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • Rail-Lock™ system for mounting optional snapless, trailerable mooring cover w/removable bow extension
  • Protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Reinforced bow structure
  • Factory-installed underpinning (under-deck shielding) for improved performance
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • NEW Copper Red or NEW Indigo Blue fence color
Electrical
  • Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting
