2023
Pro Guide V16 WalkThru
Pro Guide V16 WalkThru
w/ 90 ELPT FourStroke
Boat, Motor, Trailer and Upgraded Cover All Included

WT package w/port & starboard fiberglass-reinforced composite consoles w/tempered safety-glass walk-thru windshield;
port glovebox & drink holder; port below-console storage w/lockable angled footrest; & port top-loading lockable box
Coming Soon
Photos may show optional equipment.
Specs and features subject to change without notice.

Description



contact us

The TRACKER® PRO GUIDE™ V-16 WT combines a wide-open cockpit layout with Deep V performance, creating an agile, easy-to-own package that will please any angler from the northern wilds to the sizzling south.

Backed by the TRACKER PROMISE—the best factory warranty  in aluminum boats—the PRO GUIDE V-16 WT is a versatile and comfortable boat that's ready to chase everything from walleye to bass, pike to catfish. The easy-to-clean vinyl floor, three movable fishing chairs and big storage make it extremely fishing friendly.

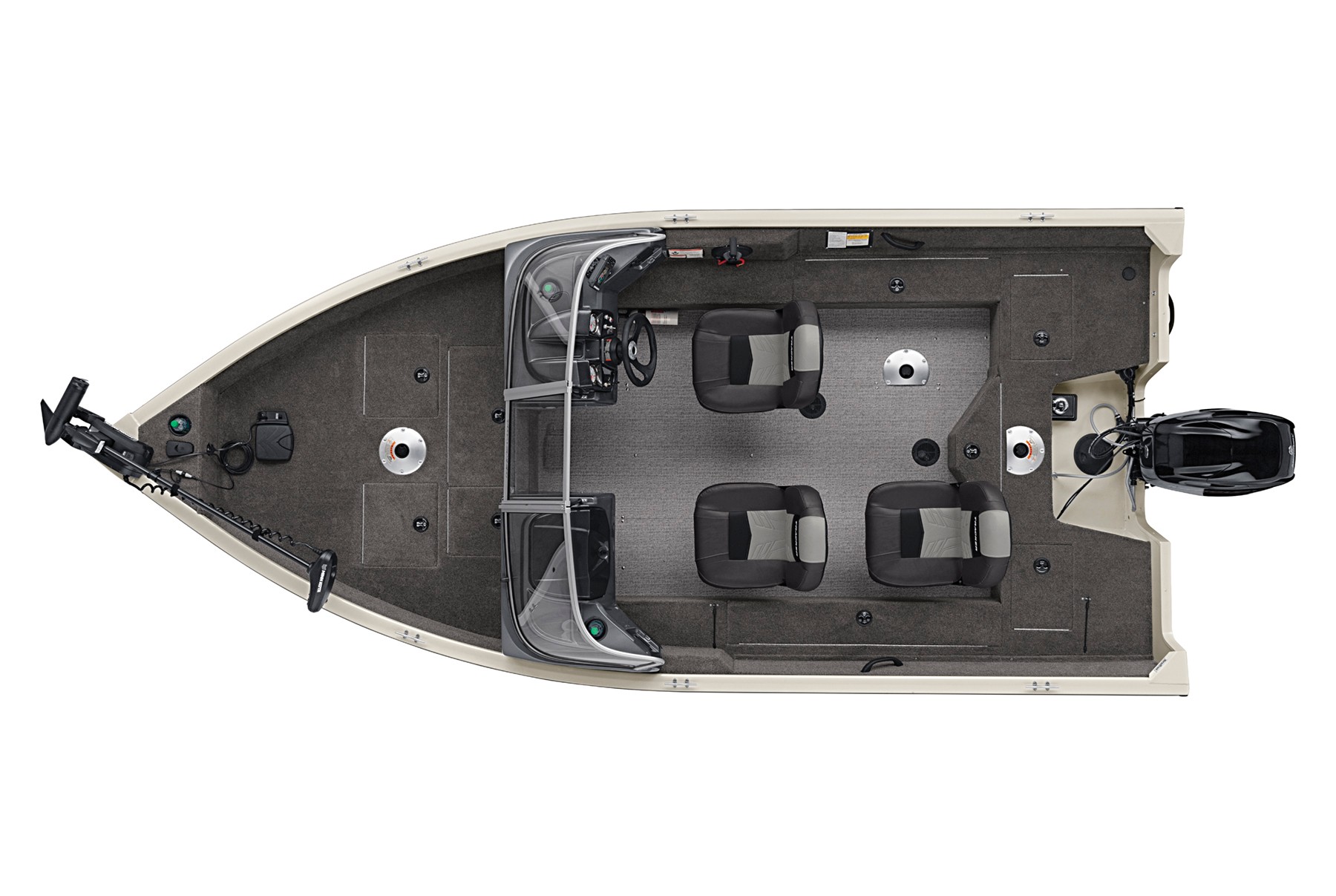

Specs & Layout

SpecificationsSpecifications
Deadrise At Bow 35 degrees  Length 16' 6''
Deadrise At Transom 20 degrees  Beam 7' 4''
Draft 15''  Bottom Width 5' 10''
Hull Material 0.100 5052 marine alloy  Max. Recommended HP 90 HP
Average Dry Weight 1170 lbs.  Fuel Capacity 25.5 gal.
Average Package Weight 2535 lbs.  Max. Person Capacity 5 persons
Package Height 6' 8''  Max. Person Weight 655 lbs.
Package Width 7' 6''  Max. Person, Motor & Gear Weight 1200 lbs.
Towing Length 22' 1''  Interior Depth 25.5''
Storage Length (w/Outboard Trimmed Down) 18' 10''  Transom Height 21''

Move pointer over boat to open/close compartments.
2023 Pro Guide  V16 WalkThru, Exclusive Auto Marine, deep-v aluminum fishing boat, power boat, outboard motor, mercury marine
2023 Pro Guide  V16 WalkThru, Exclusive Auto Marine, deep-v aluminum fishing boat, power boat, outboard motor, mercury marine

Features

Comfort, Convenience & Peace of Mind

  • Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
  • Limited lifetime hull warranty
  • NMMA® certified
  • Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
  • Easy-fill EPA-compliant fuel tank
  • Bow & stern eyes
  • 6 flip-up cleats including 2 midship cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
  • Paddle

Livewell Systems

  • Bow 23-gal. (87.06 L), 40" (1.02 m) aerated livewell w/divider, removable bait bucket, timer, recirculator & pump-out system
  • 500 GPH (1,892.71 LPH) aerator/fill pump
  • 500 GPH (1,892.71 LPH) recirculating pump
  • Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
  • Adjustable aerator heads for maximum water control

Trolling Motor

  • Minn Kota® PowerDrive™ 12V, 42-lb. (19.05 kg) thrust, 54" (1.37 m) shaft, foot-control trolling motor
  • Thru-bolted trolling motor mount for extra strength

Console

  • Lowrance® HOOK2 4x swivel color fishfinder w/Bullet transducer
  • Single-cable, no-feedback rotary steering
  • Sleek fiberglass-reinforced console top w/tinted windscreen & built-in drink holder
  • Forward-console tackle box storage w/bungee cord
  • Illuminated multifunction tachometer/trim gauge & speedometer/fuel gauge
  • Toggle switches
  • Black Metallic instrument & switch panel
  • Mercury® control box
  • Stardust console color

Interior

  • Elevated bow & aft fishing decks w/large bow storage lids for easier access
  • 6 pedestal seat base locations
  • 1 movable driver/fishing seat w/sliding base adjustment plus 2 movable fishing seats, all w/360°-swivel & lock, folding w/sturdy 2-3/8" (6.03 cm) seat pedestals
  • Carpeted trolling motor deck w/drink holder
  • 2 bow storage compartments
  • Starboard below-console storage w/lockable angled footrest
  • 2 deep top-loading lockable boxes in the cockpit sides for rods/gear to 8' (2.44 m)
  • Port deck rod hold-down straps
  • Aft center deck step w/lockable storage
  • Exclusive VERSATRACK® accessory-mounting channel in gunnels
  • 16-oz. (.45 kg) marine-grade, fishing-friendly carpet on decks & trim
  • Low-maintenance commercial-grade, chemical-resistant vinyl cockpit floor

Performance

  • Deep deadrise & reversed chines for a smoother, drier ride & better overall performance
  • Pressed-in strakes for optimal performance
  • Factory-matched, performance-tested propeller

Construction & Exterior



  • Color: DIAMOND COAT™ Starlite Blue or TRACKER® White color
  • DIAMOND COAT™ 2.0 finish features industry-exclusive powdercoat & clearcoat for brilliant durability
  • All-welded, 2-piece .100 aluminum Deep V hull w/wide beam & stable bottom for a smoother, drier ride in rough waters
  • Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull
  • Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
  • Pressed-in hull strakes for enhanced performance
  • Reverse chine hull design for drier ride & better handling
  • Transom motor-mounting plate for increased strength & durability
  • Welded-in longitudinal stringer system for full-length support along the running surface
  • Pressure-treated floor & deck(s) w/limited lifetime warranty
  • All compartment lids are flush-mount, carpeted & all-aluminum for structural rigidity, tight fit & long-term durability
Electrical
  • NEW 800 GPH (3,028.33 LPH) bilge pump
  • Stowable navigation lights w/LED courtesy light at bow
  • Bow courtesy light
  • 2 battery trays
  • Interstate® batteries: 1 cranking & 1 trolling
  • Console-mounted 12V outlet
  • Wiring system wrapped in abrasion-resistant protective conduit
Trailer
  • Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
  • Chrome wheels & matching hub covers w/13" (33.02 cm) radial tires
  • Hubs designed for quick & easy hub lubrication
  • Space-saving swing-away tongue to reduce storage length
  • Pivot-up locking jack w/swivel wheel
  • Heavy-duty winch w/nylon strap & bow safety strap
  • Outboard motor support to reduce hull & transom stress while towing
  • Heavy-duty upright load guides for easy, centered loading
  • Carpeted bunks & fender boards to protect hull
  • Submersible LED lighting
  • Nylon tie-down straps (supplied w/boat package)
  • Safety cables
